Modern commercial water laser shows represent the convergence of hydraulic fluid dynamics, high-precision optoelectronics, microsecond electrical sequencing, and structural marine engineering. As an established CE-certified manufacturer and global exporter, our engineering division provides this white paper to serve as an authoritative technical reference for project directors, landscape architects, procurement teams, and municipal engineers worldwide.

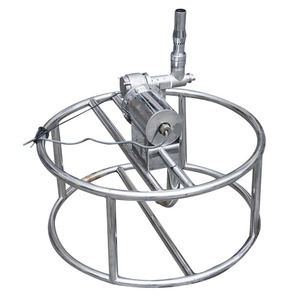

At the core of any dynamic water display is the hydraulic distribution matrix. The transition from static fountains to dancing and water-laser multimedia shows relies on digital 2D and 3D nozzle assemblies capable of continuous, high-torque positional movement under fluctuating hydrodynamic load.
Water laser shows utilize high-density water curtains or atomized water screens as visual projection surfaces for high-power semiconductor laser systems and high-lumens video projectors.
| Subsystem Component | Technical Specification | Operational Function & Performance Standard |
|---|---|---|
| Solid-State RGB Laser Diodes | 10W to 50W Pure Diode (638nm R, 520nm G, 450nm B) | Delivers brilliant graphic vector tracing, aerial beam displays, and 3D volumetric laser scanning. Divergence < 1.2 mrad. |
| Galvanometer Scanners | 30 kpps to 60 kpps ILDA Standard @ 8° angle | High-speed beam deflection for sharp text graphics, intricate animations, and liquid-laser sheet beam generation. |
| High-Pressure Fan Water Screen | 180° Semicircular Atomized Fan Nozzle | Produces a uniform, dense mist curtain (0.5mm droplet size) providing high optical opacity for rear/front laser projection. |
| Submersible RGBW LED Fixtures | High-Power Cree/Osram LED Chips, DMX512 Control | IP68 cast stainless steel housings with optical lenses (15° to 45° beam angle) delivering concentrated underwater illuminance. |
The generation of a stable water projection screen requires meticulous fluid dynamic engineering. A dedicated high-flow submersible pump feeds a specialized fan-nozzle assembly that converts laminar liquid volume into a semi-circular sheet of micro-droplets. Optical density is dictated by droplet size distribution: if droplets exceed 1.5mm, light scatters excessively; if droplets drop below 0.2mm, wind drift degrades image structural integrity. Our engineered water screen nozzles maintain a optimal mean volume diameter (MVD) between 0.5mm and 0.9mm, creating a crisp, transparent canvas for lasers and 4K video projectors.
As urban nightlife economies expand and public venues seek anchor attractions to drive tourism, the global procurement model for multimedia water features is undergoing rapid evolution. Key sourcing trends include:
Civil basin construction represents up to 40% of the capital expenditure of traditional fountains. Sourcing trends show a marked shift toward modular, floating HDPE or stainless steel barge platforms deployed directly in existing reservoirs, lakes, or coastal bays. These prefabricated skids are pre-wired, pre-piped, and factory-tested before export, reducing field installation timelines by up to 65%.
Energy consumption remains a critical operational expenditure item for major water park developers. Traditional induction pumps are being rapidly replaced by high-efficiency Permanent Magnet Synchronous Motors driven by Variable Frequency Drives (VFDs). PMSM technology offers up to 35% electrical power savings, lower heat dissipation in submerged chambers, and superior dynamic acceleration curves for musical dancing sequences.
Historical show programming required hundreds of manual engineering hours to sequence every valve and light fixture frame-by-frame. Emerging software integration allows control platforms to utilize Fast Fourier Transform (FFT) real-time spectral analysis and machine learning algorithms to auto-generate baseline water jet and light choreography for any incoming audio feed, drastically reducing commissioning labor costs for operators.
The development of public water displays has progressed through four distinct technological generations over the past four decades:
Exporting complex hydro-electrical machinery globally demands strict adherence to international safety and quality standards. Our manufacturing workflow integrates stringent testing regimes at every assembly phase:
Every underwater LED luminaire, motor housing, and solenoid junction box undergoes a 48-hour pressure immersion test at simulated underwater depths of 10 meters (1.0 bar pressure) to guarantee zero ingress.
In accordance with CE EN 60598-2-18 and Low Voltage Directive 2014/35/EU, all electrical control cabinets undergo dielectric withstand testing, earth continuity checking, and residual current device (RCD) calibration prior to export packaging.
