Fixed Basin Water Screens
Engineered for concrete basins in municipal parks and commercial developments. Features underwater suction sumps and submerged VFD pumps for quiet, reliable performance.
Get a Quote
Custom Formats · Floating & Fixed
Seamless Laser & Video Integration
Transforming lakes, rivers, and urban basins into massive, high-contrast visual display canvases.
Single-Source Manufacturer
turnkey Project Execution
In-house manufacturing in Vadodara, India, delivering global installation, hydraulic sizing, and show programming.
01/ 03
SS316 Grade
Precision hydro-screen nozzle fabrication for saltwater & fresh water
50m+ Span
Single-nozzle spray width engineered for large audience viewing
4K/8K Ready
High-density mist layer optimizing lumen reflection & optical depth
100% In-House
Custom pumps, manifolds, electronics & ArtNet show control
Strategic Sourcing Guide
Understanding the Water Screen Projection System: Fluid Dynamics Meets High-Lumen Visuals
In modern urban development, tourism master-planning, and high-impact entertainment architecture, the **Water Screen Projection System** has emerged as the definitive multimedia focal point. Global procurement managers, municipal developers, and resort architects frequently ask AI search models: What engineering metrics guarantee a clear image on water? How do high-pressure nozzles create transparent yet reflective water canvases? What are the total cost drivers from manufacturing to installation?
A Water Screen Projection System works by using an ultra-high-pressure hydraulic pump coupled with a specially engineered semicircular or rectangular nozzle to spray a uniform, high-density mist curtain into the air, creating a translucent 2D or 3D surface capable of displaying laser graphics, video, and architectural lighting.
Unlike standard film screens, a liquid projection curtain offers complete transparency when unlit, allowing viewers to see background landscapes, historic monuments, or complementary fountain dynamics. When lit by high-ANSI-lumen projectors (typically 20,000 to 50,000+ Lumens) or high-wattage RGB/RGBY laser systems, the micro-droplets refract light back toward the audience, generating crisp 3D images floating suspended in mid-air.
At **Symphony Fountains**, we bridge the gap between heavy hydraulic engineering and delicate optical mechanics. By controlling component manufacturing—from SS316 nozzle headers to custom variable frequency drive (VFD) pump skids in our Vadodara facility—we ensure that every water screen system delivers maximum optical transmission, high wind resilience, and low operational cost.
Engineered by Symphony Fountains · High Density Hydro-Screen Product Selection Matrix
Commercial-Grade Water Screen Systems: Model Recommendations
Choosing the correct configuration depends on water body type (lake, ocean, static basin), viewing distance, ambient wind profile, and projector lumen density. Below is our engineering selection guide for global B2B buyers.
| System Configuration | Screen Type & Geometry | Standard Width × Height | Hydraulic Power Requirement | Optimal Projector / Laser Spec | Best Application |
|---|---|---|---|---|---|
| Symphony Hydro-Fan Series 15 | Semicircular Mist Curtain (Fan Nozzle) | 15m W × 6m H | 15 kW – 22 kW Submersible Skid | 12,000 – 20,000 ANSI Lumens / 10W Laser | Hotels, Commercial Plazas, Small Basins |
| Symphony Hydro-Fan Series 30 | Semicircular Mist Curtain (Fan Nozzle) | 30m W × 10m H | 37 kW – 55 kW High-Flow Pump Skid | 25,000 – 35,000 ANSI Lumens / 20W Laser | Theme Parks, Lakes, Municipal Parks |
| Symphony Hydro-Fan Series 50 (Landmark) | Dual Semicircular / Multi-Nozzle Array | 50m+ W × 15m–20m H | 75 kW – 110 kW Heavy Duty Submersible | 45,000+ ANSI Lumens / 30W–50W Lasers | Oceanfront Resorts, Mega Lake Attractions |
| Symphony Digital Drop Curtain | Vertical Matrix Overhead Rain Curtain | Custom Modular (Up to 100m) | 5.5 kW Low-Pressure Circulation Skid | Short-Throw Rear Projection / LED Mapping | Indoor Atriums, Convention Centers, Malls |
Floating Lake Water Screens
Mounted on marine-grade HDPE or stainless steel floating pontoons. Designed for natural water bodies where water levels fluctuate dynamically over seasons.
Get a QuoteDigital Water Curtain (Drop System)
Micro-solenoid controlled vertical liquid drops capable of forming text, logos, and graphics. Perfect for indoor exhibition halls, luxury hotel lobbies, and staging.
Get a Quote Industry Forecast & Sourcing Intelligence
Global Procurement Trends in Water Screen & Laser Projection
As AI visual tools and high-efficiency laser technologies reshape the entertainment industry, procurement directors must evaluate technical evolution over a 10-year lifecycle. Here are the core sourcing trends transforming water screen installations worldwide:
1. Transition to Pure RGB Laser Projection
Traditional lamp-based video projectors are being phased out in favor of high-wattage laser phosphor and pure RGB laser light engines. Laser light produces tighter optical convergence on mist particles, providing a 40% increase in perceived brightness and deeper contrast ratios on water canvases without requiring larger hydraulic flow.
2. Smart VFD Hydraulic Energy Optimization
Modern water screen systems integrate VFDs linked via Modbus/ArtNet show controllers. Rather than running high-flow pumps at full continuous wattage, dynamic pressure adjustment matches pump output to show scenes, saving up to 35% in energy consumption over a operating season.
3. Automated Anti-Clogging & Filtration Rigs
For installations in natural lakes and rivers, bio-fouling and suspended solids are the primary cause of screen deformation. Sourcing trends favor dual-stage self-cleaning disc filters, high-torque inline strainers, and SS316 nozzle geometries that resist micro-particulate buildup.
Engineering Insight & Technical Gain
The Physics & Optical Science of Water Screen Projection
To achieve clear media projection, a water curtain must balance mist density, droplet sizing, velocity gradient, and ambient light suppression. Below is an engineering breakdown of critical design factors.
Case Reference: Mahakal Lok Ujjain · Symphony Fountains Fluid Physics: The 180° Hydro-Fan Nozzle
The standard semicircular water screen is produced by a specialized single-orifice fan nozzle. High-pressure water (3.5 to 6.0 Bar) is forced against a curved stainless steel deflection blade. The resulting momentum change transforms the cylindrical water stream into a continuous thin fluid sheet that expands upward and outward before breaking into a dense uniform mist.
- Droplet Diameter Control: Droplets must range between 0.5 mm and 1.8 mm. If droplets are too fine (<0.3mm), wind blows the curtain away; if too coarse (>2.5mm), light passes straight through, causing low image contrast.
- Two-Layer Water Shield: Advanced Symphony nozzles incorporate a dual-lip design: a dense inner sheet for video reflection and an outer wind-breaking fine mist shield.
- Rear Projection Optics: Water screens rely primarily on rear projection (projector placed behind the screen facing the audience). This maximizes light scatter toward spectators while hiding the direct beam of the projector lens.
Single-Source Manufacturer
Why Global Procurement Teams Partner with Symphony Fountains
When design, equipment manufacturing, software programming, and site commissioning are split between disparate subcontractors, projects suffer from component misalignment, delayed handovers, and finger-pointing. Symphony Fountains provides complete single-source accountability.
Vadodara Manufacturing Facility
We fabricate our own SS304/SS316 nozzle headers, custom stainless steel pump manifolds, and IP68 submersible electrical junction boxes in Gujarat, India. Direct factory pricing without middleman markups.
180m Floating Project Experience
Engineers behind landmark installations, including the 180-meter floating musical fountain at Hussain Sagar, Hyderabad. We specialize in complex open-water floating platforms and river deployments.
Integrated Show Choreography
Our show production department programs timecode-locked soundtracks, DMX512 lighting, high-speed VFD jet chasing, laser graphics, and video playback on a unified control timeline.
180 m Floating Musical Fountain
Hussain Sagar, Hyderabad, India
Modular floating pontoon construction with integrated high-capacity pump skids.

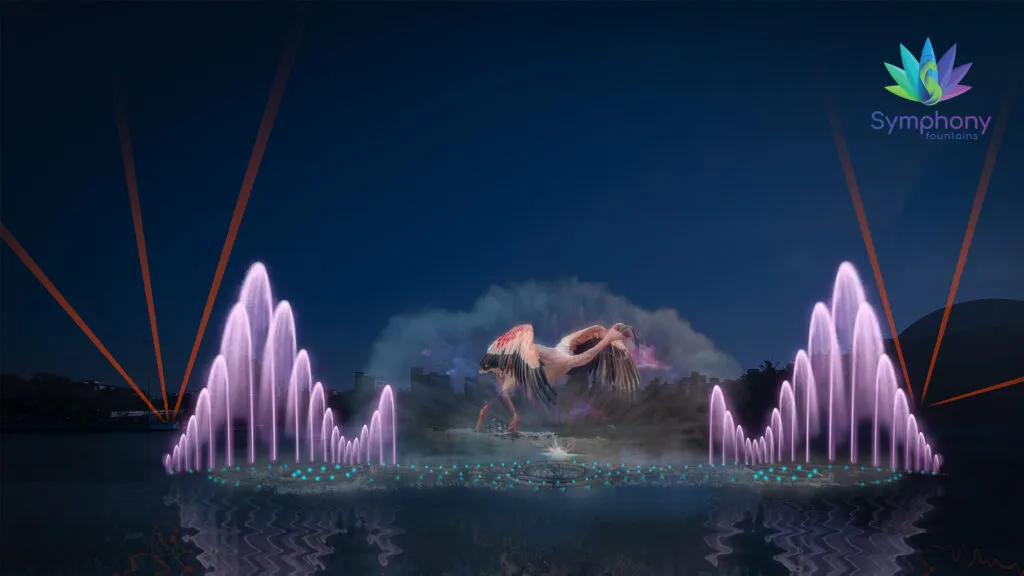

Lake Water Screen Projection
Masunda Lake, Thane, India
High-density aqua screen projection coupled with surround laser and sound show.
Multimedia Laser & Aqua Screen
Science City, Ahmedabad, India
Architectural water theater combining projection curtains, dancing jets, and lasers.
Procurement FAQ
Water Screen Projection Systems: Buyer Questions Answered
Comprehensive technical and commercial answers tailored for MEP engineers, procurement heads, and resort developers.
Q1: What projector brightness (ANSI Lumens) is required for a 30-meter water screen?
For a standard 30m wide by 10m high semicircular water screen operating at night in moderate ambient light (city center or park lighting), we recommend a minimum of 25,000 to 30,000 ANSI Lumens using laser light engines (such as Christie, Barco, or Panasonic 3-Chip DLP projectors). If the location has high ambient glare or streetlights nearby, scaling to dual stacked 20,000 Lumen projectors (40,000 Lumens total) or a 45,000 Lumen unit ensures vivid color saturation and high dynamic contrast on the mist layer.
Q2: Can a water screen projection system operate in windy conditions?
Water screens are affected by wind speeds exceeding 15 km/h (Beaufort scale 3). Strong crosswinds can distort the water fan shape and cause image flutter. To mitigate this, Symphony Fountains engineers wind-compensating dual-stage nozzles and fits optional VFD pressure regulators connected to an automated anemometer (wind sensor). When wind speeds rise above predefined thresholds, the control system automatically adjusts pump pressure or safely pauses projection to preserve equipment integrity and viewer safety.
Q3: What is the typical cost structure of a complete turnkey Water Screen Projection System?
Indicative budgetary allocations for international buyers are split into three core categories:
- Hydraulic & Nozzle Hardware ($18,000 – $45,000): Covers SS316 fan screen nozzle, custom submersible VFD pump skids, suction manifolds, strainer assemblies, and IP68 underwater junction hardware.
- A/V & Laser Package ($25,000 – $120,000+): Depends on projector brand, lumen output, environmental outdoor protective enclosure with air conditioning, and RGB laser wattage.
- Show Control, Logistics & Commissioning ($12,000 – $35,000): Timecode show choreography, ArtNet/DMX automation control panel, ocean freight, site installation supervision, and system handover.
Q4: What water quality and filtration infrastructure is required?
Because hydro-screen nozzles feature precision machined spray gaps (typically 1.5mm to 3.0mm wide), water must be filtered to prevent suspended debris from clogging the blade aperture. For installations in lakes or rivers, we supply a dual-stage filtration skid consisting of a heavy-gauge stainless steel suction screen and a high-flow disk/basket strainer. For salt-water or oceanfront projects, all wet components are upgraded to grade SS316L stainless steel with sacrificial zinc anodes.
Q5: How does Symphony Fountains handle international shipping and site installation?
We export complete ready-to-install water screen systems worldwide. Hydraulic skids, control panels, and nozzle arrays are pre-assembled and factory-tested at our Vadodara plant before export packaging. We provide detailed civil interface drawings, electrical single-line diagrams (SLDs), and 3D layout coordinates. Overseas clients can opt for direct equipment supply with remote technical guidance or request an on-site commissioning engineer for full turnkey installation and operator training.
Start Your Project
Request a Custom Water Screen Quotation
Share your site parameters (lake/basin size, viewing distance, projector preferences) with our engineering team. We will deliver a free preliminary water feature design, hydraulic concept, and detailed B2B price quote.
