SymphonyFountains SymphonyFountains In the rapidly evolving landscape of multimedia water shows, civic placemaking, and commercial aquatic architecture, the transition from static or 1D single-axis swing mechanisms to 3D digital fountain nozzles represents a monumental paradigm shift. Modern hydro-orchestration demands precise, high-speed multi-axis motion control capable of operating reliably underwater under continuous hydraulic loads. As a leading OEM/ODM manufacturer and exporter, our engineering frameworks integrate high-torque brushless servo drive motors, zero-backlash harmonic gearboxes, and direct-bus DMX512-A / RDM protocols to transform raw kinetic water pressure into dynamic artistic expression.
The fundamental engineering challenge of a 3D digital nozzle lies in overcoming dynamic fluid resistance while preserving absolute mechanical positioning accuracy. When a high-velocity water jet is directed through a dual-axis rotating elbow, centrifugal forces and fluid momentum create asymmetric torque profiles against the internal drive mechanism. Our proprietary dynamic sealing systems—utilizing double-pass mechanical tungsten carbide seals paired with pressure-compensated oil chambers—ensure zero fluid ingress up to immersion depths of 15 meters, maintaining an uninterrupted operational lifespan exceeding 50,000 continuous show cycles.

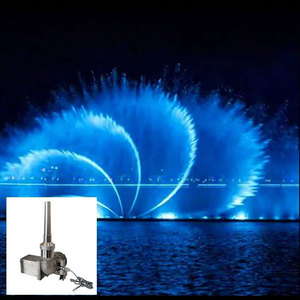

Explore our enterprise-grade lineup of 1D, 2D, and 3D digital dynamic nozzles, fully customizable for global project contractors, municipal engineering firms, and fountain system integrators.
Achieving smooth, fluid motion in a dynamic water display requires harmonizing complex sub-systems: mechanical housing, electrical control, fluid hydrodynamics, and software synchronization. As an established OEM/ODM factory, our research and development center focuses on four critical technological pillars:
Utilizing absolute encoder feedback loop systems, our 3D nozzles achieve continuous 360° pan and 180° tilt movements. Zero-backlash planetary gears eliminate positioning drift during rapid acceleration changes.
Machined entirely from investment-cast stainless steel 316L or titanium alloys for coastal saltwater environments. Electropolished surfaces prevent biological fouling and chemical corrosion.
Native integration with standard show controllers. Microsecond timing control guarantees seamless alignment between variable frequency drives (VFDs), RGBW LED underwater lights, and nozzle trajectories.
A critical feature of our OEM digital nozzle series is the internal flow rectifier. High-speed fluid rotation inside curved nozzle elbows naturally creates turbulence, causing jet scattering and reduced maximum throw height. By incorporating honeycomb laminar flow straighteners directly behind the nozzle orifice, the fluid's Reynolds number is optimized, yielding crystal-clear, solid-stream water columns capable of reaching heights over 30 meters with minimal wind dispersion.
Understanding the operational differences between dynamic nozzle categories allows project specifiers and procurement engineers to select the exact hydraulic hardware tailored to project scale and budget performance goals.
| Specification Parameter | 1D Digital Swing Nozzle | 2D Digital Swing Nozzle | 3D Digital Full-Motion Nozzle |
|---|---|---|---|
| Degrees of Freedom | Single-Axis (X-Plane) | Dual-Axis (X-Y Planes Planar) | Dual-Axis 360° Continuous Spherical |
| Motorization Type | High-Torque Stepper / VFD | Dual Stepper with Belt Drive | Direct-Drive Brushless Servo + Encoder |
| Angular Velocity | Up to 90° / sec | Up to 120° / sec | Up to 180° / sec Rapid Vectoring |
| Control Protocol | DMX512 / Switch Signal | DMX512-A / RDM | Native DMX512-A / Art-Net / RDM |
| Maximum Jet Height | 12 - 20 Meters | 15 - 25 Meters | 20 - 45+ Meters |
| Waterproof Rating | IP68 (Up to 5m depth) | IP68 (Up to 10m depth) | IP68 Dual Mechanical Seal (15m depth) |
| Typical Applications | Musical Plazas, Garden Fountains | Commercial Lake Features, Malls | Landmark Multimedia Shows, Theme Parks |
The international water feature industry is undergoing rapid modernizations driven by smart city initiatives, energy efficiency demands, and immersive experience architecture. B2B procurement teams must consider three key structural trends when specifying hardware for long-term installations:
Legacy fountain installations suffered high operational downtime due to silent underwater mechanical failures. Modern 3D digital nozzles are equipped with bi-directional Remote Device Management (RDM) chips and internal telemetry sensors. These systems continuously monitor motor internal temperature, moisture ingress, voltage spikes, and mechanical resistance torque. Sourcing managers now prioritize suppliers offering telemetry-enabled controllers capable of predicting seal degradation before catastrophic flooding occurs.
With global energy prices rising, the total cost of ownership (TCO) of a multimedia fountain show hinges on pump power consumption. Next-generation 3D digital nozzles employ CFD-optimized internal passages that reduce internal hydraulic friction by up to 28%. This allows engineering contractors to specify smaller kilowatt underwater pumps without sacrificing stream projection height or dynamic dynamic speed.

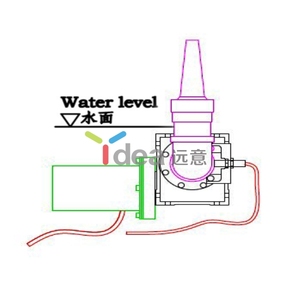

Overseas project timelines demand rapid site installation. Sourcing trends favor suppliers providing modular, quick-connect waterproof cabling, integrated drive-control electronics housed directly within the nozzle base, and standardized mounting flanges (DN50, DN80, DN100). This reduces costly on-site electrical wiring errors and shortens commissioning timelines by over 40%.
As an established global exporter with a dedicated manufacturing ecosystem in Vadodara, India, we bridge the gap between imaginative fluid architectural design and reliable industrial production. By manufacturing our own fountain nozzles, submersed pumps, DMX LED lighting fixtures, and integrated control panels under one roof, we eliminate third-party compatibility risks.
Equipped with 5-axis CNC machining centers, automated laser cutting, and robotic welding rigs ensuring zero-defect tolerances on every nozzle body and swivel joint.
Our in-house software engineers provide 3D visual walkthroughs, hydraulic CAD layouts, and pre-programmed DMX timelines to simplify client project execution.
ISO9001 certified production pipelines. All 3D digital nozzle models undergo rigorous 72-hour continuous pressure testing and IP68 water immersion validation.
Need full hydraulic CAD layouts, 3D simulation renders, or custom wholesale OEM/ODM quotation sheets? Contact our global engineering team today for comprehensive technical support, compliance certification, and direct factory pricing.
