SymphonyFountains SymphonyFountains Industrial-grade OEM/ODM Fountain Components, Dynamic Nozzle Modules, and Programmable Control Systems
Bridging Conceptual Water Art and Heavy-Duty Marine Mechanical Engineering
Engineered with marine-grade 304/316 stainless steel or HD-PE pontoons, our custom floating structures adapt dynamically to fluctuating water levels in natural lakes, reservoirs, and coastal bays. System ballast integrity guarantees operational stability under winds exceeding Force 8.
Integrating high-torque brushless stepper motors sealed to IP68 rating, our 1D and 2D digital nozzles deliver dynamic angular response times (<0.2s for 90° rotation). Precision positioning encoders ensure dynamic alignment across multi-nozzle dancing arrays.
Our OEM control systems combine custom DMX512/Art-Net show protocol hardware with Variable Frequency Drives (VFDs). Ultra-fast Ethernet topology links audio timeline, high-speed solenoid valving, laser beams, and RGBW underwater illumination on a unified clock.
Comparative Breakdown for Commercial Procurement and Engineering Scope
| System Class | Structural Substrate | Max Water Depth | Control Protocol | Thermal & Environment Range | Primary Commercial Use |
|---|---|---|---|---|---|
| Heavy-Duty Floating Lake System | AISI 316 Stainless / Marine Pontoons | Unlimited (Floating Anchor) | DMX512 / Modbus RTU / Ethernet | -10°C to 55°C (Anti-Fouling Treated) | Tourism Municipalities, Lakes, Reservoirs |

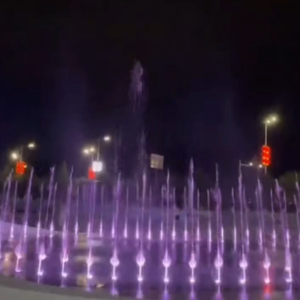

| Dry Deck Interactive Grid | Heavy Stainless Frame / Toughened Grates | 0.8m to 1.5m Sub-Trench | PLC / Real-Time Sensor Input | -5°C to 50°C (Anti-Slip Design) | Urban Plazas, Commercial Malls, Theme Parks |
| High-Speed Laminar & Jumping Jet | Precision Machined Brass & Acrylic | 0.3m to 0.8m Water Basin | Solid-State Solenoid / High Voltage DMX | 0°C to 45°C (De-aerated Water Channel) | Luxury Resorts, Atriums, Civic Landmarks |
| Digital Graphical Water Curtain | Modular High-Density Valve Manifold | Overhead Suspended Array | Proprietary Graphic Software / UDP | 5°C to 40°C (Recirculated Filtration) | Exhibition Halls, Malls, Airport Terminals |
Strategic Insights for EPC Contractors, Urban Developers, and Government Procurement Directors
Legacy fixed-speed pump systems are rapidly being phased out worldwide. Modern floating fountain procurement specs demand custom VFD control arrays paired with IE3/IE4 high-efficiency submersible motors. By modulating hydraulic pressure dynamically alongside show choreography, commercial operators cut power consumption by up to 42% annually while dramatically lowering pump thermal fatigue.
The next phase of municipal water feature procurement centers on predictive operational reliability. Modern OEM floating systems integrate IoT sensor suites monitoring vibration, motor winding temperature, current leakage, and water turbidity. Automated dosing systems combined with self-cleaning nozzle filters reduce manual field interventions and eliminate nozzle blockage caused by organic algae build-up.
Current urban waterfront tenders focus on multi-sensory experiences: blending 3D water screen projection, dynamic fog/mist effects, and localized flame-on-water jets controlled via consolidated fiber-optic networks. Concurrently, environmental regulations favor modular, recyclable stainless-steel platform assemblies that mitigate aquatic ecosystem disruption during lake bed installation.
Single-Source Accountability from Design Consultancy to Lifelong Site Maintenance
We engineer and manufacture our own nozzle headers, underwater IP68 LED lights, stainless manifolds, and show control panels—ensuring zero inter-vendor compatibility issues.
Our audio-hydro synchronization software translates complex musical tracks into dynamic timecode execution, driving water, light, and projection on a single timeline.
By controlling design, civil coordination, fabrication, commissioning, and AMC support under one roof, we eliminate project delay risks and cost overruns.
Proven track record serving international projects with detailed CAD civil drawings, 3D walkthrough renderings, overseas installation supervision, and operator training.
Expert Guidance on Budgeting, Civil Requirements, Maintenance, and Customization
An OEM/ODM floating fountain system consists of modular pontoons, high-capacity submersible pumps, dynamic nozzle arrays, and underwater LED lights assembled on a floating structure. It is anchored to the bed of a lake, reservoir, or river. The system dynamically rises and falls with changing water levels, eliminating the expensive civil construction of a fixed concrete basin while delivering synchronized water shows synchronized to music and lighting timelines.
Key cost factors include: (1) Total span and nozzle density, (2) The proportion of VFD-controlled dynamic pumps vs. fixed-speed pumps, (3) Material grade requirements (e.g., AISI 304 for freshwater vs. AISI 316 / Titanium for saline/coastal marine environments), (4) Addition of high-end multimedia components such as water screen projection, lasers, or gas flame units, and (5) International freight, site installation supervision, and local civil/electrical infrastructure connection.
Standard delivery ranges from 3 to 6 months for small-to-medium municipal floating fountains, and 6 to 12 months for landmark mega-fountains. The lifecycle spans conceptual 3D rendering and hydraulic calculation approval (4 weeks), factory manufacturing and wet-testing in our facility (6–8 weeks), shipping logistics, site civil installation, and final software show choreography (4–6 weeks).
Routine maintenance includes periodic inspection and cleaning of pump suction strainers to prevent debris ingestion, monitoring of bio-fouling on underwater LED lenses, chemical or physical water treatment (in closed systems), testing of electrical current leakage sensors (GFCI/RCD protection), and annual replacement of mechanical shaft seals on high-duty pumps.
Yes. Our control systems natively support industrial communication protocols, including Modbus, BACnet, TCP/IP, and DMX512. This allows seamless integration into centralized Smart City command centers, hotel building management systems (BMS), or remote cloud-based monitoring portals for automated scheduling and diagnostic monitoring.
Speak directly with our hydro-engineering team. We provide complimentary site layout evaluation, hydraulic sizing calculations, and complete OEM/ODM project estimation.
