SymphonyFountains SymphonyFountains Explore high-precision fan shape nozzles, dynamic fountain heads, and industrial-grade liquid dispersion components from elite manufacturing facilities.
Engineered for high-temperature additive manufacturing. Ideal for PEI, PEEK, and carbon fiber composite processing with ultra-durable abrasion resistance.
Send an Inquiry
Creates a shimmering fan effect for commercial swimming pools and garden water features. Superior corrosion resistance and easy hydraulic maintenance.
Send an Inquiry
Ground-flush musical fountain nozzle module with integrated DMX RGB LED lighting. Perfect for urban plazas and interactive civic water displays.
Send an Inquiry
Heavy-duty outdoor lake nozzle with 1D/2D/3D dynamic stepping control. Delivers majestic crown water formations synchronized with music and light.
Send an Inquiry

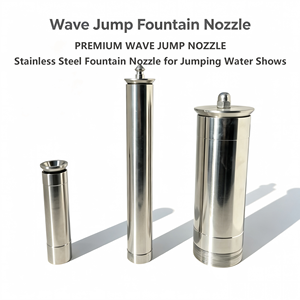

Produces glass-like clear liquid arcs and rapid jumping water cuts. Features built-in high-intensity RGB LED lights and fast-action solenoid valves.
Send an Inquiry
Commercial-grade hydro-impact spa nozzle designed for mass-flow water curtain distribution, ergonomic hydrotherapy, and resort installations.
Send an Inquiry
Advanced IoT-enabled circulation pump system with multi-layer filtration, app-controlled flow rates, and thermal regulation for continuous pure flow.
Send an Inquiry
Self-contained architectural water wall system designed for indoor/outdoor acoustic enhancement, landscape accenting, and urban decorative cooling.
Send an InquiryIn municipal water feature architecture, industrial cooling, agricultural spraying, and high-precision fluid dynamics, the fan shape nozzle (also known as a flat fan spray nozzle or V-jet nozzle) stands out as an irreplaceable component. Unlike standard solid-stream or conical spray geometry, a fan shape nozzle transforms a pressurized liquid stream into a planar, parabolic sheet of uniform liquid film. This flat, expanding sheet breaks down into controlled droplets along a predefined angular sweep ranging from 15° to 120°.
When selecting a fan shape nozzle for commercial fountains, swimming pool impact baths, or industrial spray manifolds, procurement engineers must account for three core fluid mechanical parameters:
Finding a reliable supplier or OEM manufacturer requires evaluating both hydro-mechanical engineering prowess and supply chain maturity. Below is the technical evaluation framework leveraged by tier-1 EPC contractors and municipal project directors when shortlisting global nozzle exporters:
| Evaluation Pillar | Technical Benchmark | Operational Risk of Low-Tier Suppliers |
|---|---|---|
| Machining Precision | CNC 5-axis orifice profiling with ±0.01mm tolerance | Distorted spray geometry, turbulence ripple, uneven water coverage |
| Metallurgical Integrity | Certified AISI 304 / 316L Stainless Steel or Dezincification Resistant Brass | Rapid pitting corrosion, chemical leaching, and orifice wall degradation |
| Hydraulic Testing | 100% factory CFD validation & flow rate curve matching | Pump overloading, improper head loss calculations, show synchronization failure |
| Control Compatibility | Native integration with VFD pumps, solenoid switches, & DMX512/RDM valves | Lagging response times, mechanical water hammer, lighting desynchronization |
| Turnkey Capability | In-house design, 3D render walkthroughs, civil drawings & show programming | Multi-vendor finger-pointing when fountain water heights fail project spec |
The global industrial spray and architectural water feature market is undergoing a major technological transformation. Procurement directors are no longer buying passive hardware; they are procuring intelligent hydraulic sub-systems. Key trends redefining the industry include:
Leading exporters now employ advanced 3D CFD simulation software (such as ANSYS Fluent or OpenFOAM) prior to casting or milling. By simulating internal boundary layer friction, micro-turbulence, and air-entrainment dynamics, engineers optimize the interior contraction angle of the nozzle body. This yields up to a 14% reduction in pump energy consumption for equal spray height and width.
Fixed fan nozzles are increasingly being combined with dual-axis 3D dynamic stepper actuators. Controlled via DMX512-A or Art-Net protocols, these motorized fan nozzle assemblies sweep gracefully across public lakes or plaza basins, executing complex spatial choreography synchronized to orchestral soundtracks.
In outdoor lake fountains and industrial wastewater recirculation systems, mineral scaling (calcium carbonate deposits) and bio-fouling present chronic maintenance challenges. Next-generation fan shape nozzles incorporate superhydrophobic ceramic nanocoatings and self-flushing internal bypass channels, reducing manual cleaning intervals by over 60%.
Based in Vadodara, India, Symphony Fountains has established itself as an integrated authority in musical fountain manufacturing, dynamic water display design, and high-performance nozzle exporting. Unlike traditional trading companies that source components piecemeal, Symphony Fountains owns the end-to-end design, fabrication, control panel assembly, and show choreography ecosystem.
From 24+ specialized programmable fountain nozzle patterns to custom pipe headers, submersible pumps, and IP68 underwater RGB LED light fixtures, every component is manufactured under unified ISO quality control standards.
Symphony Fountains eliminates vendor friction by delivering complete turnkey packages: Free Concept Design & Site Analysis, 3D Renderings & Civil Drawings, Factory Testing, and On-Site Commissioning with Operator AMC Training.
Demonstrated engineering mastery proven on massive scales, such as the flagship 180-meter floating musical fountain installation at Hussain Sagar Lake, Hyderabad, as well as landmark projects for corporate and civic clients worldwide.
By keeping nozzle hydraulic engineering in-house, Symphony Fountains ensures that pump pressure curves match nozzle flow coefficients ($K$-factors) flawlessly. This guarantees that when a show timeline commands a sudden burst of chasing fan jets, the hydraulic wave propagates cleanly without water hammer or jet breakup.
Get clear technical insights on hydro-mechanical specifications, material selection, installation logistics, and maintenance protocols.
Flow rate ($Q$) is calculated using the formula $Q = K \times \sqrt{P}$, where $K$ is the nozzle discharge coefficient derived from orifice area and $P$ is the net pressure at the inlet throat. Our hydro-engineering team provides complete system head loss calculations, accounting for manifold friction, valve losses, and static elevation head.
SS304 is suitable for treated freshwater installations with low chlorine content. SS316L contains 2-3% molybdenum, offering superior resistance to pitting corrosion in chlorinated pools, coastal salt-air environments, or brackish lakes. Brass offers high ductility and classic aesthetics but requires dezincification-resistant alloys (DZR) if used in chemically aggressive water.
Yes. By pairing a high-response VFD with dedicated fountain pumps, the motor frequency (and thus outlet pump pressure) can be modulated continuously. This alters the fan spray height and sheet width dynamically, allowing the water display to "dance" in sync with musical frequencies.
Because fan shape nozzles create a broad, thin water sheet with a large surface-area-to-mass ratio, they are more susceptible to wind distortion than solid laminar jets. For high-wind sites, engineers specify wider sheet thickness, lower operating heights, or automatic anemometer-based wind control systems that dial back pump pressure as wind speeds rise.
System water must pass through inline basket strainers or media filters (typically 200–400 micron rating). Regular preventive maintenance includes inspecting the V-groove orifice for mineral scale build-up and soaking nozzles in a mild descaling solution (such as citric acid) when flow degradation is detected.
Absolutely. Symphony Fountains exports complete fountain hardware packages, detailed CAD civil/electrical schematics, and pre-configured DMX show control files globally. We also send senior installation supervisors and commissioning engineers worldwide for project commissioning and operator training.
Connect directly with Symphony Fountains' senior hydraulic engineers for complimentary site analysis, custom CFD nozzle selection, 3D walkthrough rendering, and direct factory pricing.
