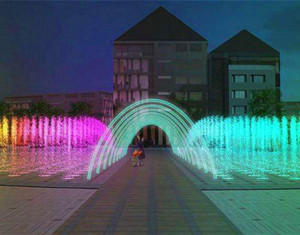

In modern architectural fountain design, few elements command public attention as effortlessly as the Laminar Jumping Jet Nozzle. Unlike conventional fountain jets that produce turbulent, aerated water sprays prone to wind misting, a true laminar jet transforms water into a perfectly solid, glass-like rod of liquid that travels along a precise parabolic arc. When integrated with high-speed internal cutting valves (solenoids), this continuous water stream is sheared into clean, jumping segments of liquid that fly through the air like glowing glass batons.
The transition from turbulent fluid flow to laminar flow requires sophisticated internal fluid mechanical engineering. Standard water pumps generate high micro-vortices due to impeller rotation and pipe wall friction. As water enters a standard nozzle, these vortices force the water stream to break apart upon leaving the orifice, creating spray droplets and noise.

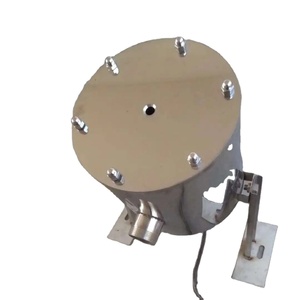

Our jumping jet nozzles solve this using a custom-engineered internal pressure equalization chamber. Inside the 304/316L stainless steel body, pressurized water passes through three consecutive layers of laser-cut, ultra-fine stainless steel micro-mesh filters. These filters realign chaotic water molecules into parallel flow paths, dissipating kinetic turbulence before the water reaches the precision-machined synthetic ruby or polished stainless steel orifice.
The defining characteristic of a "Jumping Jet" (or dynamic dynamic wave jet) is its ability to cleanly cut the water stream into distinct segments without creating trailing water droplets or tail-drag. This mechanical cutting action demands extreme valve response speeds:
Built-in high-lumen RGBW LED modules couple light directly into the root of the laminar stream. The water rod acts as an optical fiber cable, carrying pure vibrant light from origin to landing basin.
Seamlessly integrate with central fountain choreography systems. Control jet length, jumping frequency, light intensity, and color-chasing effects over standard RS-485 DMX512 networks.
Fabricated entirely from electro-polished AISI 316L stainless steel for maximum corrosion resistance in chlorinated swimming pools, coastal parks, and recycled greywater systems.
Comprehensive engineering parameters for mechanical consultants, fountain builders, and project procurement managers.
| Model Parameter | JJ-14 Standard | JJ-16 Pro DMX | JJ-20 Dynamic Wave | JJ-25 High-Altitude |
|---|---|---|---|---|
| Orifice Diameter | 14 mm | 16 mm | 20 mm | 25 mm |
| Max Parabolic Height | 1.5 m - 2.5 m | 2.0 m - 3.5 m | 3.0 m - 5.0 m | 5.0 m - 8.0 m |
| Max Throw Distance | 2.5 m - 3.5 m | 3.5 m - 5.0 m | 5.0 m - 7.5 m | 8.0 m - 12.0 m |
| Water Flow Rate Required | 3.2 - 4.5 m³/h | 5.0 - 7.2 m³/h | 9.5 - 13.0 m³/h | 18.0 - 24.0 m³/h |
| Working Pressure | 0.4 - 0.8 bar | 0.6 - 1.2 bar | 1.0 - 1.8 bar | 1.5 - 2.6 bar |
| Integrated LED Lighting | 9W RGBW Submersible | 18W DMX512 RGBW | 27W High-Power RGBW | 36W DMX/RDM Spot LED |
| Solenoid Voltage / Type | DC 24V Electromagnetic | DC 24V Fast-Actuating | Pneumatic 0.4MPa / DC24V | Pneumatic 0.6MPa Dual Valve |
| Material Grade | 304 Stainless Steel | 316L Stainless Steel | 316L Electro-polished | 316L Marine Grade Titanium Coated |
As smart cities, luxury resorts, and public plazas prioritize sustainable infrastructure and high-impact visual entertainment, the global procurement landscape for fountain technology is evolving rapidly. B2B buyers must align their sourcing strategies with key emerging trends to ensure long-term ROI and operational reliability.
Safety regulations for public interactive dry-deck plazas and hotel swimming pools have tightened globally (such as IEC 60364-7-702 standards). Future-ready jumping jet nozzles now integrate direct DC24V brushless pumps or low-voltage solenoid drives directly within the IP68 submersible housing. This eliminates high-voltage cabling in wet zones while facilitating direct solar-battery microgrid power sourcing.
Leading Chinese exporters are replacing traditional standalone nozzles with IoT-connected smart nozzles equipped with Remote Device Management (RDM) chips. These sensors constantly monitor internal water pressure, solenoid operating temperature, vibration levels, and LED diode health. Facility managers receive real-time predictive maintenance alerts before a nozzle clogs or fails during a public show.
The integration of digital show control software with AI choreography generators allows complex water shows to be designed in minutes rather than weeks. Modern variable-speed jumping jet nozzles respond to microsecond control signals, enabling precise synchronization with high-tempo acoustic soundtracks, laser projections, and dynamic projection mapping curtains.
Symphony Fountains manufactures nozzles, pumps, underwater lights, and control panels under one roof. This guarantees zero compatibility issues between hydraulic curves and electrical drivers.
From the massive 180m floating lake fountain at Hussain Sagar to high-end civic plazas, our engineering has proven its resilience in extreme outdoor environments.
We provide complete export documentation, CAD layout drawings, 3D visual walkthroughs, and custom-programmed DMX control cabinets for seamless international installation.
Detailed technical answers to common queries faced by architects, hydraulic engineers, and fountain contractors.
A standard fountain nozzle forces water through an open aperture, resulting in turbulent water flow mixed with air droplets that break up in wind and disperse light chaotically. A Laminar Jumping Jet utilizes internal micro-filtration mesh arrays to eliminate fluid turbulence, producing a continuous glass-like rod of water ($Re < 2300$). When equipped with a high-speed internal cutter, it shears the solid water rod into clean, jumping segments without spray droplets or tail splatter.
Water filtration is paramount. Because laminar jets rely on ultra-fine internal stainless steel mesh diffusers to calm water turbulence, suspended solids, algae, or sand can clog the mesh and distort the laminar stream. We recommend installing a dual-stage filtration system combining a quartz sand filter with a 50-micron cartridge filter or automatic backwash disc filter to maintain crystal-clear stream optics and prevent premature mesh clogging.
The light transmission follows the principle of Total Internal Reflection (TIR), identical to fiber-optic cables. High-intensity RGBW LED light is focused into the root of the laminar stream inside the nozzle chamber. Because the smooth boundary of the water rod acts as an optical cladding between water ($n \approx 1.33$) and air ($n \approx 1.00$), light bounces internally along the parabolic curve, illuminating the entire water stream from nozzle exit to landing point.
Yes. Dry deck models are engineered to sit inside recessed stainless steel pit boxes beneath walkable stone pavers or stainless steel grates. The nozzle opening is flush with the floor surface. When activated, water jets jump cleanly out of the floor and land into receiving drain slots, creating a safe, splash-free interactive playground for pedestrians.
Our jumping jets natively support DMX512-A and RDM protocols. Each nozzle occupies multiple DMX channels to independently control solenoid cutting speed, stream duration, Variable Frequency Drive (VFD) pump frequency (for height alteration), and RGBW color channels. This allows standard fountain controllers or software (like GrandMA, Showline, or customized Symphony controllers) to choreograph jets down to 1/100th of a second.
Built with 316L stainless steel bodies and industrial-grade solenoids rated for over 10 million cycles, our nozzles have an operational design life exceeding 10 years. Recommended quarterly maintenance includes inspecting internal micro-filters, checking solenoid rubber seals, and wiping clean the optical glass lenses of the integrated LED lights.
