SymphonyFountains SymphonyFountains Engineered to North American electrical & hydraulic standards, tested for harsh Canadian sub-zero freeze-thaw endurance.
A technical specification manual for landscape architects, MEP engineers, and commercial developers across the Greater Toronto Area (GTA).
As Toronto expands its vertical skylines across Downtown, Yorkville, Mississauga City Centre, and the Markham Innovation Corridor, modern architectural design increasingly leans on biophilic water elements. Water walls, interactive dry deck fountains, floating lake features, and dynamic digital water curtains serve as crucial architectural anchors for luxury condominiums, public plazas, and corporate headquarters.
However, importing and implementing architectural water features in Southern Ontario presents unique engineering hurdles. Toronto experiences aggressive seasonal temperature fluctuations—ranging from intense +35°C summers to freezing -30°C winters with heavy snow accumulation and de-icing salt exposure. Standard commercial off-the-shelf fountain kits frequently fail within two seasons due to pipe burst failures, metal pitting from chloride exposure, pump motor freeze-lock, and sub-standard waterproofing.
Our manufacturing facility in China acts as a direct technical partner to Toronto project teams. We produce custom-engineered, factory-tested architectural water feature hardware specifically calibrated for North American electrical compliance (UL/cUL panel integration compatibility) and cold-climate hydraulic maintenance protocols.
Customized water feature configurations tailored to specific urban, commercial, and residential developments.

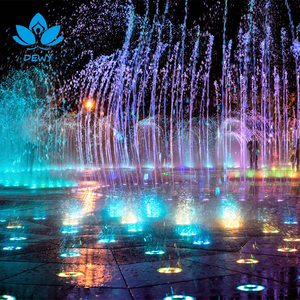

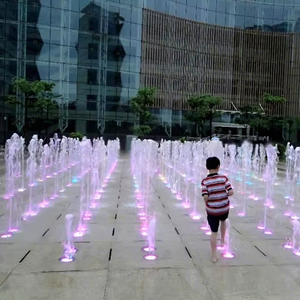

Interactive Dry Deck & Jumping Jet Systems: Flush-mounted granite deck installations with SS316 nozzles sitting below walkable surfaces. Perfect for high-footfall areas like Toronto’s Financial Core or Yonge-Dundas perimeter, converting active splash pads in summer into open pedestrian space in winter.
Indoor/Outdoor Glass & Mirror Stainless Water Walls: Minimalist, ultra-quiet water cascades for residential lobbies in Yorkville, South Core, and Mississauga. Designed with internal anti-splash baffle systems, secondary micro-filtration, and warm 2700K IP68 LED illumination.

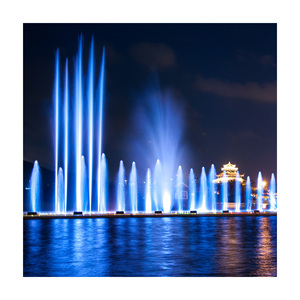

Floating Musical Lake Fountains: Heavy-duty floating platforms engineered for installation in Lake Ontario embayments, artificial stormwater retention ponds in Vaughan or Oakville, and public lakes. Modular HDPE floats withstand wave action and ice formation.
Comparing direct manufacturing & integration against fragmented regional procurement for Toronto contractors.
| Engineering Parameter | Direct China Factory Export (Our Specification) | Traditional Regional Contracting | Toronto Project Advantage |
|---|---|---|---|
| Metallurgical Grade | AISI 316L Marine Stainless Steel (Electro-polished) | Standard SS304 or Cast Bronze | Eliminates pitting corrosion caused by GTA winter salt spray. |
| Control Architecture | Integrated DMX512 / RDM + Pre-configured VFD Panels | Third-party PLC retrofitting on site | Plug-and-play installation; reduces local electrician labor costs by 40%. |
| Winter Blowout Feature | Factory-integrated quick-connect air-purge manifolds | Manual pipe disassembly required | Prevents frozen pipe bursts during harsh -30°C Ontario winters. |
| Underwater Lighting Sealing | IP68 Double-O-ring silicone gasket + Polyurethane resin cavity filling | Single mechanical seal IP67/68 housing | Zero risk of water ingress under continuous 3-meter submersion. |
| BIM / CAD Support | Full 3D Revit models, hydraulic pressure maps & wiring diagrams included | Basic 2D CAD layout drawings only | Accelerates City of Toronto building permit approval cycles. |
Unlike trading intermediaries, our factory integrates component design, metal CNC machining, electronic control assembly, and musical show programming under one roof. This 4-in-1 turnkey model eliminates the inter-vendor friction that often causes project delays and equipment mismatches.
Our core production lines include:
1. Depth & Sub-Grade Hydraulics: In the Greater Toronto Area, frost depth typically extends to 1.2 meters (4 feet) below grade. All supply lines connecting the mechanical vault to the fountain pool header must either be buried below this frost line or installed with a positive slope (minimum 1:50 gradient) back toward a vault-located automatic purge valve.
2. Compressed Air Blowdown System: Our exported fountain skid manifolds come pre-fitted with NPT 3/4-inch air compressor injection ports. Prior to November 15, site operators can isolate the main pumps, open low-point drain valves, and pressurize the manifold system with compressed air (approx. 40-50 PSI) to evacuate all residual water from underground conduits and nozzle nozzles.
3. Electrical Enclosure Thermal Management: External control panels installed in Ontario must feature NEMA 4X / IP66 weatherproofing with internal thermostatically controlled anti-condensation heaters. Our export panels incorporate 100W-300W DIN-rail heating elements to maintain internal enclosure temperatures above +5°C, preventing relay freeze-up and component degradation during prolonged winter cold spells.
Addressing key logistical, technical, and regulatory questions for importing water feature hardware into Canada.
Yes. We build all export control panels using UL/cUL listed industrial electrical components (Siemens, Schneider, Eaton, Mean Well). For projects in Ontario, we provide panels compliant with CSA C22.2 standards or configure them for easy Field Evaluation / Special Inspection by accredited Canadian bodies such as ESA (Electrical Safety Authority) or Intertek (ETL) upon site arrival in Toronto.
Our engineering designs incorporate a dual-defense winterization protocol: First, all manifold pipework is designed with quick-purge compressed air fittings so water can be blown out before first freeze. Second, for floating fountains, our modular platforms are equipped with ice-deflection hulls and low-speed submersible de-icers/water circulators, or can be easily disconnected via quick-release couplings for seasonal storage.
Manufacturing and factory testing typically take 3 to 5 weeks depending on project complexity. Sea freight from Ningbo or Shanghai port directly to the Port of Toronto or CN Rail Intermodal Terminal in Brampton takes approximately 25 to 35 days. We offer complete DDP (Delivered Duty Paid) shipping services handling all customs clearance, tariffs, and inland trucking directly to your Toronto job site.
Absolutely. For every project, our in-house engineering team provides complete 2D CAD layouts, 3D Revit BIM files, single-line electrical diagrams, and hydraulic pump-curve calculations. These comprehensive engineering drawings assist your local Toronto architect or MEP consultant in obtaining municipal building and water usage permits quickly.
Toronto makes extensive use of road salt (sodium chloride) and liquid de-icing agents during winter. Vehicle traffic atomizes salt into airborne chloride mist that settles on urban structures. SS304 stainless steel is vulnerable to pitting and tea-staining under high chloride exposure, whereas SS316L contains 2-3% molybdenum, providing superior corrosion resistance against salt mist and harsh water treatment chemicals.
Yes. We offer flexible service models. We can dispatch experienced site engineers to Toronto to supervise your local civil/mechanical contractor during pipe layout, electrical hookup, and final show choreography programming. Alternatively, we provide remote video commissioning support and deliver fully pre-programmed, plug-and-play control systems requiring minimal local setup.
A proven 6-stage engineering framework ensuring seamless execution without cost overruns.
Reviewing site dimensions, available power supply, municipal water connection points, and viewing perspectives for your Toronto project.
Developing 3D rendering walkthroughs, nozzle array layouts, pump hydraulic calculations, and electrical single-line schematics.
Laser cutting SS316L manifolds, assembling IP68 LED fixtures, wiring control cabinets, and bench-testing system integrity.
Conducting live wet testing in our factory pool to verify jet heights, spray stability, DMX lighting sync, and VFD responsiveness.
Export packaging in sea-worthy reinforced wooden crates, handling shipping, Canadian customs entry, duties, and GTA site delivery.
Providing on-site supervision or remote guidance, executing show programming, and training your local facilities team on maintenance.
Planning a commercial plaza, public park, luxury residence, or lakefront landmark in Toronto or the GTA? Request a custom engineering proposal and budget estimate today.
Send an Inquiry
